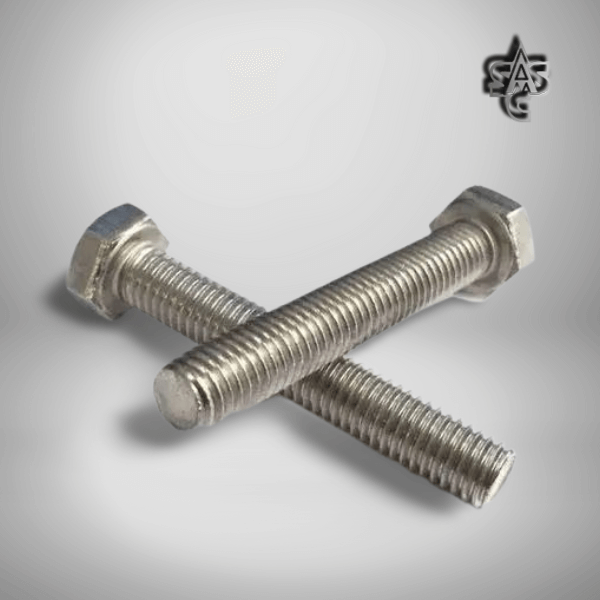

Stainless Steel 316H Bolt

Home » Stainless Steel 316H Bolt
Get a Quote

UNS S31609 Allen Bolt, ASME SA193 Stainless Steel 316H Flange Head Bolt, Grade 316H SS Eye Bolt, SS 316H Stud Bolt, Din 1.4401 Hex Bolt, Stainless Steel 316H U Bolt, ASTM A193 SS 316H Hex Head Bolt, 316H Stainless Steel Flange Bolt.

We are a prominent supplier and producer of 316H stainless steel bolts. We provide fasteners at the most affordable pricing to all our clients worldwide. Nickel, chromium, and other chemical elements are included in SS 316H bolts. Under usual conditions, it possesses good corrosion resistance and is non-magnetic. Additionally, it is resilient under circumstances that are both moderately oxidising and reducing.
Heat exchangers, radiant tubes, coal gasification interior parts, steam boilers, food processing equipment, oil and gas industries, chemical industries, and other applications are just a few of the places where stainless steel 316H bolts have been used. As the leading supplier of stainless steel 304H bolts, we are also.

About Stainless Steel 316H Bolt

The minimum yield and tensile strengths of the material are each 205 MPa. The fasteners are appropriate for high temperature and pressure applications because of these values. Concerning suppliers, fastener kinds, and delivery areas, the SS 316h bolt pricing list varies. The many kinds of fasteners include cap screws, allen cap screws, carriage bolts, flange bolts, hex bolts, machine screws, and UNS S31603 Bolts. The bolts are a unique kind of fastener that may be used in place of nuts. They function like threaded rods by connecting parts on each side of them.

Specification Of Stainless Steel 316H Bolt

SpecificationsASTM A 193 / ASME SA 193 and DIN, ISO ,JIS ,GB, IS, BS, ASTM and all International Standards
SizeM3 - M100 | 3/6″ - 4″ | Custom Sizes
Bolt Length3 mm - 200 mm | Custom Sizes
DimensionsDIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3
Threads ConfigurationUNF, BSW, BSF, METRIC, UNC, or as required and ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
FormHex, Threading, Square, Round as per Gauge Etc.
HeadHex, Square, Round, Hex flange, Flat, T-head & Triangular etc.
Neck typeHex, Square, Triangular, Oval & Knurled etc.
Manufacturing ProcessPassivation /plain, Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing.
Surface CoatingBlack Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request
PackingIN BULK: carton, pallet, Small Boxes or customer request
Test CertificateAs per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
CertificationDual Certified As per ASTM & ASME Codes
Delivery timeRegular product : 7-15 days, Custom product : 2-4 weeks

Equivalent Grades Stainless Steel 316H Bolt

GradeUNS
No
Old BritishEuronormSwedish
SS
Japanese
JIS
BSEnNoName
316HS31609316S51-----

Chemical Composition Stainless Steel 316H Bolt

UNS NoGradeCSiMnPSCrMoNiN
S31609316H0.04/0.100.752.000.0450.03016.00/18.002.00/3.0010.00/14.00––

Mechanical Properties Stainless Steel 316H Bolt

UNS NoGradeProof Stress
0.2% (MPa)
Tensile Strength
(MPa)
Elongation
A5(%)
Hardness Max
HBHRB
S31609316H2055154021795

Dimensions Of Stainless Steel 316H Bolt

Stainless Steel Bolts Dimensions Chart :

Nominal Size
or Basic
Product
Diameter

Full-Size Body
Diameter,
E
Width Across Flats,
F
Width Across
Corners, G
Head Height, H BasicRadius of
Fillet, R
Nominal Thread
Length for Bolt
Lengths,
LT
inchmmMaxMinBasic
inch
MaxMinMaxMinBasic
inch
MaxMinMaxMin6 in. and
Shoter
Over
6 in.
1⁄40.250.260.2377⁄160.4380.4250.5050.48411⁄640.1880.150.030.010.751
5⁄160.31250.3240.2981⁄20.50.4840.5770.5527⁄320.2350.1950.030.010.8751.125
3⁄80.3750.3880.369⁄160.5620.5440.650.621⁄40.2680.2260.030.0111.25
7⁄160.43750.4520.4215⁄80.6250.6030.7220.68719⁄640.3160.2720.030.011.1251.375
1⁄20.50.5150.4823⁄40.750.7250.8660.82611⁄320.3640.3020.030.011.251.5
5⁄80.6250.6420.60515⁄160.9380.9061.0831.03327⁄640.4440.3780.060.021.51.75
3⁄40.750.7680.72911⁄81.1251.0881.2991.241⁄20.5240.4550.060.021.752
7⁄80.8750.8950.8521 5⁄161.3121.2691.5161.44737⁄640.6040.5310.060.0222.25
111.0220.9761 1⁄21.51.451.7321.65343⁄640.70.5910.090.032.252.5
1 1⁄81.1251.1491.0981 11⁄161.6881.6311.9491.8593⁄40.780.6580.090.032.52.75
1 1⁄41.251.2771.2231 7⁄81.8751.8122.1652.06627⁄320.8760.7490.090.032.753
1 3⁄81.3751.4041.3452 1⁄162.0621.9942.3822.27329⁄320.940.810.090.0333.25
1 1⁄21.51.5311.472 1⁄42.252.1752.5982.4811.0360.9020.090.033.253.5
1 5⁄81.6251.6581.5912 7⁄162.4382.3562.8152.6161 3⁄321.1160.9780.090.033.53.75
1 3⁄41.751.7851.7162 5⁄82.6252.5383.0312.8931 5⁄321.1961.0540.120.043.754
1 7⁄81.8751.9121.8392 13⁄162.8122.7193.2483.0991 1⁄41.2761.130.120.0444.25
222.0391.964332.93.4643.3061 11⁄321.3881.1750.120.044.254.5
2 1⁄42.252.3052.2143 3⁄83.3753.2623.8973.7191 1⁄21.5481.3270.190.064.755
2 1⁄22.52.5592.4613 3⁄43.753.6254.334.1331 21⁄321.7081.4790.190.065.255.5
2 3⁄42.752.8272.7114 1⁄84.1253.9884.7634.5461 13⁄161.8691.6320.190.065.756
333.0812.9614 1⁄24.54.355.1964.95922.061.8150.190.066.256.5
3 1⁄43.253.3353.214 7⁄84.8754.7125.6295.3722 3⁄162.2511.9360.190.066.757
3 1⁄23.53.5893.4615 1⁄45.255.0756.0625.7862 5⁄162.382.0570.190.067.257.5
3 3⁄43.753.8583.7265 5⁄85.6255.4376.4956.1982 1⁄22.5722.2410.190.067.758
444.1113.975665.86.9286.6122 11⁄162.7642.4240.190.068.258.5

Different Types Of Stainless Steel 316H Bolt

Different Types Of Bolts

Application of Stainless Steel 316H Bolt

Testing of Stainless Steel 316H Bolt

Packing of Stainless Steel 316H Bolt

Destination Of Stainless Steel 316H Bolt
